Elephant Armor Ultra-High Performance Asphalt Repair

Name: Elephant Armor Ultra-High Performance Asphalt Repair
Brand: Montana Concrete Products
Availability: InStock

Micro-trenching reinstatement material with zero VOCs and no harmful odors. The proven choice for telecom trench backfill reinstatement with over 1,000,000 lineal feet placed in Nashville, TN alone. Returns to service in 1 hour.

Compressive Strength (4 hrs):4,000 psi (27.72 MPa) [ASTM C109]

Call Chuck: 406-598-4684

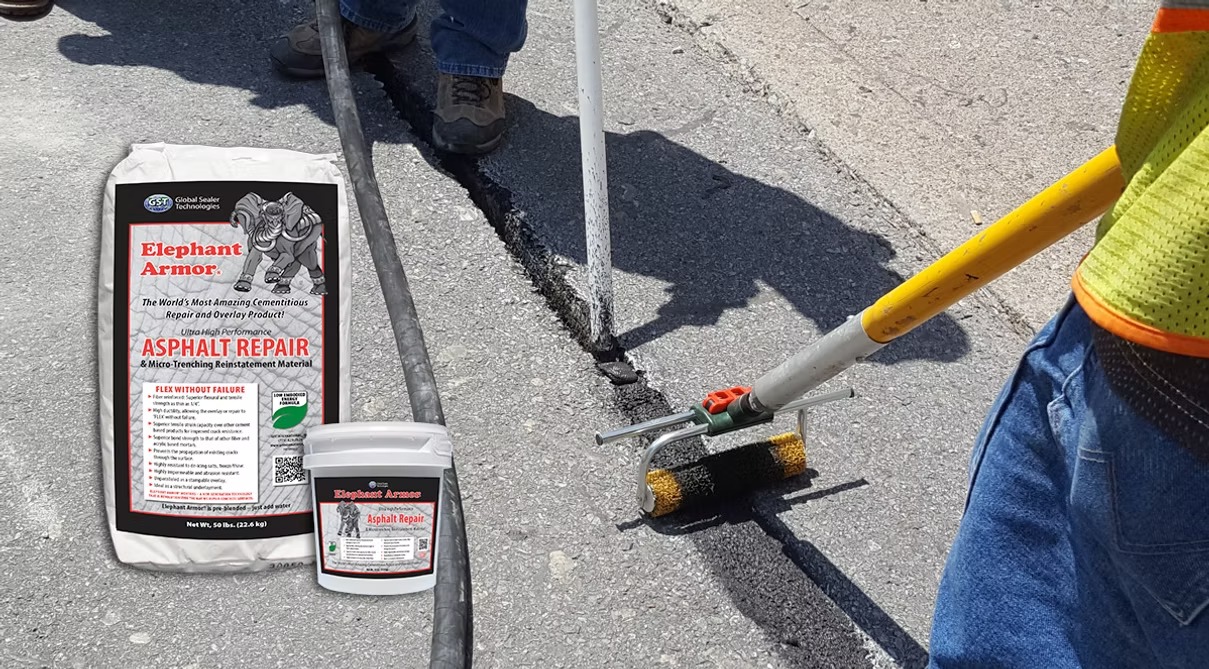

Elephant Armor Ultra-High Performance Asphalt Repair — image 1

1 / 3

Compressive Strength (4 hrs): 4,000 psi (27.72 MPa) [ASTM C109]
Compressive Strength (24 hrs): 5,500 psi (37.92 MPa) [ASTM C109]
Compressive Strength (28 days): 7,000 psi (48.26 MPa) [ASTM C109]
Split Tensile Strength (28 days): 600 psi (4.14 MPa) [ASTM C496]
Flexural Performance (28 days): 1,600 psi (11.03 MPa) [ASTM C1609]
Modulus of Elasticity (28 days): 2,700 psi (18.62 MPa) [ASTM C469]

Applications

Telecom contractors
Paving companies
City planners

Technical Specifications

Product Specifications specifications for Elephant Armor Ultra-High Performance Asphalt Repair
Product Specifications
Compressive Strength (4 hrs)	4,000 psi (27.72 MPa) [ASTM C109]
Compressive Strength (24 hrs)	5,500 psi (37.92 MPa) [ASTM C109]
Compressive Strength (28 days)	7,000 psi (48.26 MPa) [ASTM C109]
Split Tensile Strength (28 days)	600 psi (4.14 MPa) [ASTM C496]
Flexural Performance (28 days)	1,600 psi (11.03 MPa) [ASTM C1609]
Modulus of Elasticity (28 days)	2,700 psi (18.62 MPa) [ASTM C469]
Bond Strength (28 days avg)	2,500 psi (17.24 MPa) [ASTM C882]
Chloride Ion Penetrability	321.52 Coulombs (Very Low) [ASTM C1202]
Water-Soluble Chloride	0.01391% by mass [ASTM C1218]
Acid-Soluble Chloride	0.03087% by mass [ASTM C1152]
Thermal Expansion	4.968 x 10^-6 in/in/°F [AASHTO T-336]
Set Time (Initial / Final)	Approx. 50 min / 70 min [ASTM C191]
Shrinkage (28 days in water)	-0.019% [ASTM C928 / C157]
Packaging	50 lbs (22.7 kg) bags or 10 lb pails
Yield	0.5 cubic feet per 50 lb bag (22 sq ft at 1/4" thickness)

Ready to Order?

Talk to Chuck directly

Get pricing, lead times, and custom specs for this product from our owner. No call centers, no runaround.

Call 406-598-4684

Technical Documents

Technical Data Sheet (TDS)TDS Application GuideGuide

Quick Specs

Compressive Strength (4 hrs): 4,000 psi (27.72 MPa) [ASTM C109]
Compressive Strength (24 hrs): 5,500 psi (37.92 MPa) [ASTM C109]
Compressive Strength (28 days): 7,000 psi (48.26 MPa) [ASTM C109]
Split Tensile Strength (28 days): 600 psi (4.14 MPa) [ASTM C496]
Flexural Performance (28 days): 1,600 psi (11.03 MPa) [ASTM C1609]
Modulus of Elasticity (28 days): 2,700 psi (18.62 MPa) [ASTM C469]
Bond Strength (28 days avg): 2,500 psi (17.24 MPa) [ASTM C882]
Chloride Ion Penetrability: 321.52 Coulombs (Very Low) [ASTM C1202]
Water-Soluble Chloride: 0.01391% by mass [ASTM C1218]
Acid-Soluble Chloride: 0.03087% by mass [ASTM C1152]
Thermal Expansion: 4.968 x 10^-6 in/in/°F [AASHTO T-336]
Set Time (Initial / Final): Approx. 50 min / 70 min [ASTM C191]
Shrinkage (28 days in water): -0.019% [ASTM C928 / C157]
Packaging: 50 lbs (22.7 kg) bags or 10 lb pails
Yield: 0.5 cubic feet per 50 lb bag (22 sq ft at 1/4" thickness)
